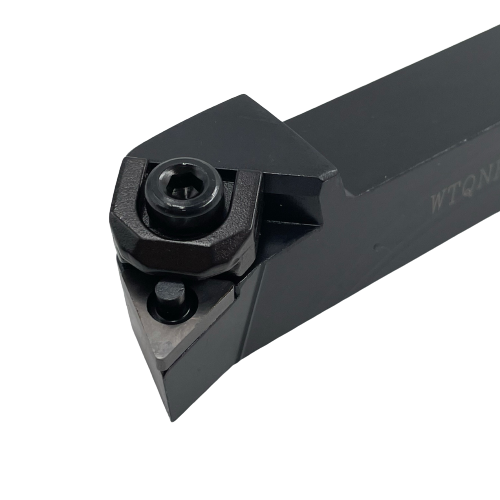

Turning holder WTQNR 2020 K16 for external turning

Turning holder WTQNR 2020 K16 for external turning.

Suitable for turning inserts TN_ _16_ _.

– Turning insert is clamped with wedge

T - Shape of turning insert which can be clamped into holder (TRIANGULAR)



- Angle under which the insert is attached to the holder  (117,5°)



N – Clearance angle of insert for this holder (0°)

R – Orientation of turnig tool is right

20 – Height of turning tool in  mm

20 – Width of turning tool in mm

-  Length of turning tool is 125mm

16 – Insert size which can be clamped in to holder

Material:

  • Hardened steel - 42-45 HRc

Compatible with inserts. . . TN_ _16_ _.
