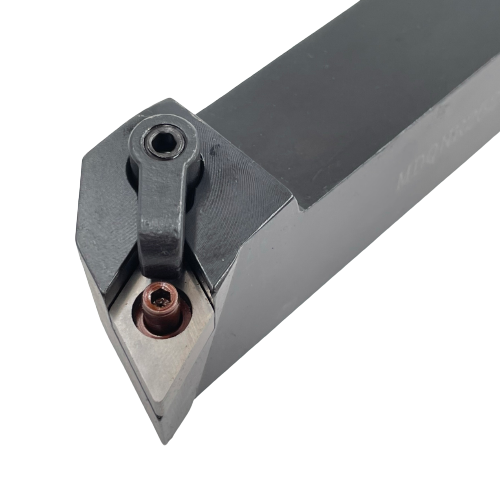

Turning holder MDQNR 2525 M15 for external turning

Turning holder MDQNR 2525 M15 for external turning.

Suitable for turning inserts DN_ _15_ _.

M - Method of clamping insert in to holder, with a clamp from above, and with screw through insert

D - Shape of turning insert which can be clamped into holder (RHOMBIC 55°)

Q - Angle under which the insert is attached to the holder (117,5°)

N – Clearance angle of insert for this holder (0°)

R – Orientation of turnig tool is right

25 – Height of turning tool in  mm

25 – Width of turning tool in mm

M -  Length of turning tool is 150mm

15 – Insert size which can be clamped in to holder

Material:

• Hardened steel - 42-45 HRc

Compatible with inserts. . . DN_ _15_ _.
